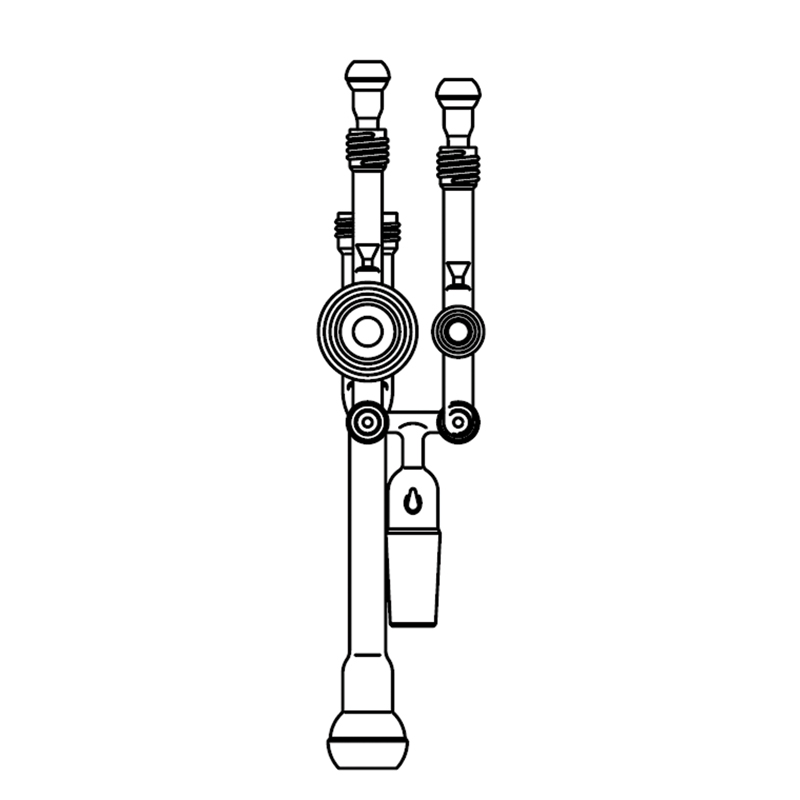

Vacuum / Inert Gas Line, AIRFREE®/진공 메니폴드, 4-port
■ 전체 사이즈 : w1170×h585 mm
■ 구성
- A : 0 - 4 mm Valve(24/40 Inner Joint (2ea), 14/20 Inner Joint (2ea))
- B : Vacuum Line (#25 O-ring Joint Cap)
- C & J : Valved Gauging Port (18/9 Ball Joint)
- D : Inert Gas Line (18/9 Ball Joint, Inert Gas Source)
- E : Valved, Cross-over Line (for Evacuation of the entire system)
- F : End Cleanout (#9 O-ring Joint, w/ Stopper)
- G : Shotoff Valve (0 - 12 mm, Manifold와 Trap의 연결부위)
- H : Pre-trap (od50×h210 mm, 상/하부 연결부 35/20 Socket Joint)
- I : Isolation Valve (0 - 12 mm)
- J : Gaugeing Port (18/9 Ball Joint)
- K : Main Trap (od45×h210 mm, 상/하부 연결부 40 mm O-ring Joint)
- L : Vacuum Source 연결부 (od 22 mm)
■ Complete Set
- 4 Port Vacuum Manifold (1ea), Pre-trap & Main Trap (각 1ea),
#25 Stopper (2ea), #9 Stopper (2ea), #18 Pinch Clamp (2ea),
■ Chemglass
■ 구성
- A : 0 - 4 mm Valve(24/40 Inner Joint (2ea), 14/20 Inner Joint (2ea))
- B : Vacuum Line (#25 O-ring Joint Cap)
- C & J : Valved Gauging Port (18/9 Ball Joint)
- D : Inert Gas Line (18/9 Ball Joint, Inert Gas Source)
- E : Valved, Cross-over Line (for Evacuation of the entire system)
- F : End Cleanout (#9 O-ring Joint, w/ Stopper)
- G : Shotoff Valve (0 - 12 mm, Manifold와 Trap의 연결부위)
- H : Pre-trap (od50×h210 mm, 상/하부 연결부 35/20 Socket Joint)
- I : Isolation Valve (0 - 12 mm)
- J : Gaugeing Port (18/9 Ball Joint)
- K : Main Trap (od45×h210 mm, 상/하부 연결부 40 mm O-ring Joint)
- L : Vacuum Source 연결부 (od 22 mm)
■ Complete Set
- 4 Port Vacuum Manifold (1ea), Pre-trap & Main Trap (각 1ea),
#25 Stopper (2ea), #9 Stopper (2ea), #18 Pinch Clamp (2ea),
■ Chemglass
